Product Description
The Description of rmc plant diagram

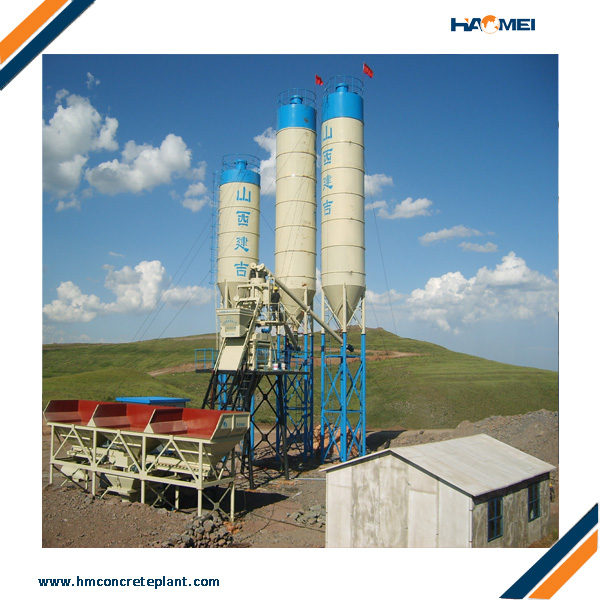

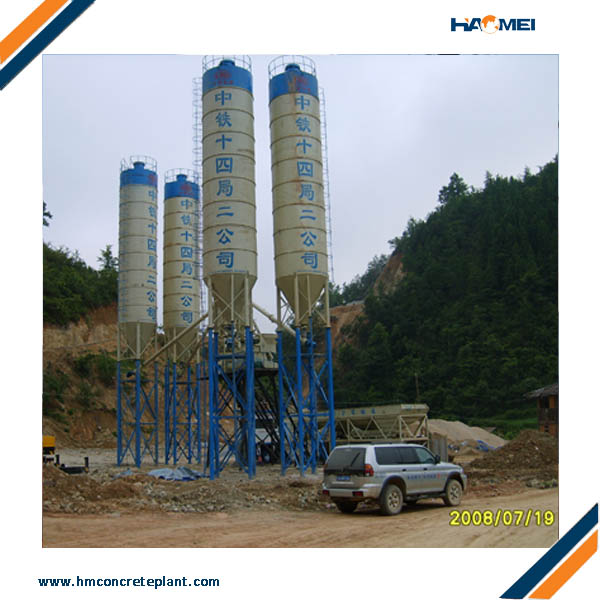

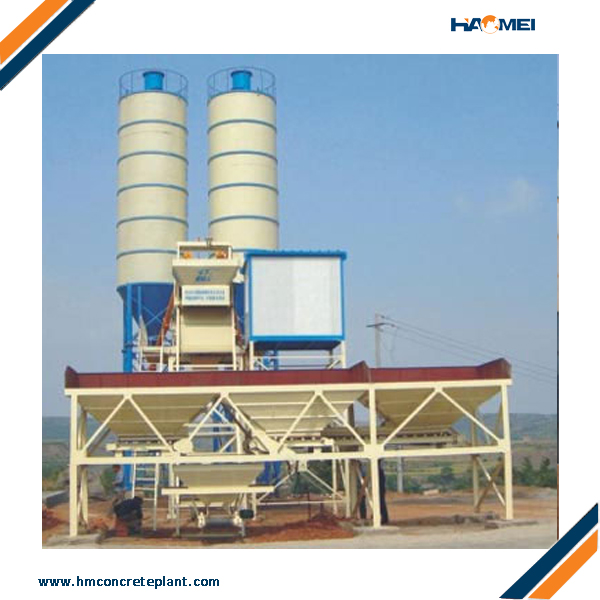

1. rmc plant diagram is one of the small-sized plant series of HAOMEI company.
2. It is full-automatic concrete mixing plant which is composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.
2. The Introduction ofrmc plant diagram Components:
1). Aggregate Batching Machine
1.1. This series of products adopt electronic weighing, digital display.
1.2. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation, reasonable design, compact structure and long service life.
1.3. Widely used in all kinds of small and medium sized construction project and rmc plant diagram.
2). Batching Machine JS concrete mixer
2.1. Shaft end sealing adopts pressure difference and multi-heterodyne sealing technology to extend shaft end’s service life.
2.2. National patented taper mixing arm
2.3. National patented monitoring system to control every part of mixer
2.4. Advanced hydraulic pressure system is adopted to open and close the discharging door.
2.5. Lubrication system to make the mixer service a long life.
2.6. Water spraying by multiple tube and circuit system.
3). Control System
3.1. Realize the material metering station, transporting mixing, unloading of automatic production with function of real-time data processing the system can automatic control, which can also be manual operation, the operation is simple and convenient.
3.2. Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. It can store various proportioning and rmc plant diagram working data, print all kinds of report data as required.
3. Short Features of rmc plant diagram:
1. International popular modular compact structure
2. Adapt and apply for the most advanced technologies
3. The mixing system with excellent mixing performance
4. Main electrical components from Germany SIEMENS
5. Suitable for small-scale construction project
4. The Technical Parameters of rmc plant diagram:
Parts of Concrete Batching Plant:
type | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | |
Theoretical production(m3/h) | 60 | 90 | 120 | 180 | 240 | |
Concrete mixer | Type | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | MAO6000/4000 |
Power(KW) | 18.5 | 65.5 | 74 | 110 | 150 | |
Discharging capacity (L) |
1000 | 1500 | 2000 | 3000 | 4000 | |
Aggregate size (Pebble/ Macadam) (mm) |
80/60 | 80/60 | 80 | 150 | 150 | |
Aggregate Bin volume(m3) | 8.38 | 12 | 20 | 30 | 40 | |
Belt conveying Capacity(t/h) | 300 | 450 | 550 | 650 | 900 | |
Weighing Accuracy | Aggregate (KG) | 3000Kg ±2% | 3000Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4200Kg ±2% |
Cement(KG) | 1500Kg ±1% | 1500Kg ±1% | 1200Kg ±1% | 1800Kg ±1% | 2200Kg ±1% | |
Fly ash(KG) | 600Kg ±1% | 900Kg ±1% | 400Kg ±1% | 500Kg ±1% | 800Kg ±1% | |
Water (KG) | 600Kg ±1% | 600Kg ±1% | 500Kg ±1% | 800Kg ±1% | 1000Kg ±1% | |
Additive(KG) | 50Kg ±1% | 50Kg ±1% | 50Kg ±1% | 80Kg ±1% | 80Kg ±1% | |
Total power(KW) | 120Kw | 165Kw | 130Kw | 170KW | 220KW | |
Discharging height(M) | 3.8 m | 4.1 m | 4.1m | 4.1m | 4.1m |
model | HZS25 | HZS35 | HZS50 | HZS75 | |
Theoretical output(m³/h) | 25 | 35 | 50 | 75 | |
Mixer model | JS500 | JS750 | JS1000 | JS1500 | |
Output per batch(m³) | 0.5 | 0.75 | 1 | 1.5 | |
Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 | |
Total power(KW) | 27 | 35 | 80 | 110 | |
Aggregate weighing accuracy(%) | (0-1500)kg±2% | (0-2250)kg±2% | (0-2500)kg±2% | (0-4000)kg±2% | |
cement weighing accuracy(%) | (0-300)kg±1% | (0-400)kg±1% | (0-500)kg±1% | (0-800)kg±1% | |
water weighing accuracy(%) | (0-200)kg±1% | (0-300)kg±1% | (0-300)kg±1% | (0-500)kg±1% | |
fly ash weighing accuracy(%) | (0-300)kg±1% | (0-300)kg±1% | (0-300)kg±1% | (0-500)kg±1% | |
additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% | |
Discharge height(m) | 3.8-4.1 | ||||
Max. aggregate dia.(mm) | 60 | 60 | 80 | 80 | |
Cement silo and screw conveyor | On request | ||||
Total weight (ton) | 20 | 25 | 35 | 45 | |
Overall dimension(LxWxH)(m) | 11.5x5.8x19.4 | 12x6x19.4 | 20.5x7.5x19.4 | 25.9x9.2x19.4 |
Type | YHZS25 | YHZS35 | YHZS50 | |
Theoretical production capacity(m³/h) | 25 | 35 | 50 | |
Concrete mixer | Type | JS500 | JS750 | JS1000 |
Power(KW) | 24.75 | 38.6 | 51 | |
Discharging capacity(L) | 500 | 750 | 1000 | |
Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | |
Aggregate Bin volume(m³) | 3.2 | 7.3 | 8.3 | |
Weighing Accuracy | Aggregate (KG) | ±2% | ±2% | ±2% |
Cement(KG) | ±1% | ±1% | ±1% | |
Fly ash(KG) | ±1% | |||
Water (KG) | ±1% | ±1% | ±1% | |
Additive(KG) | ±1% | ±1% | ±1% | |
Total power(KW) | 50Kw | 64Kw | 85Kw | |
Discharging height(M) | 2.8 m | 2.8 m | 2.8 m | |
Gross weight(T) | 12 | 16 | 20 |
